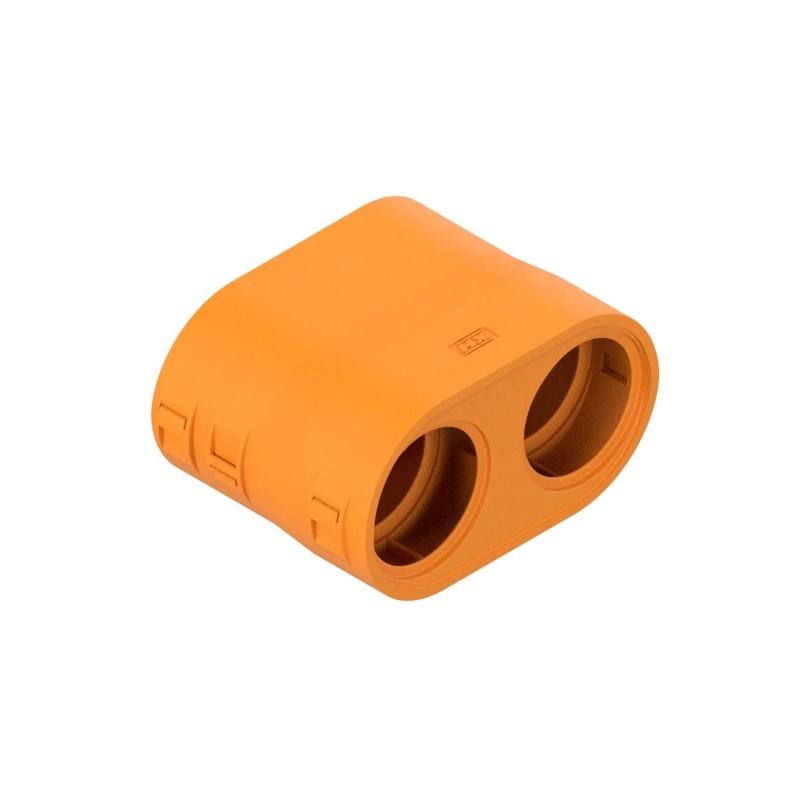

Amphenol PowerLok 300 Connector 2 POS (PL282) compatible
Harnesflex® EVO™ High Voltage Cable Protection Systems are designed to provide high mechanical protection, additional strain relief and enhanced resistance to abrasion and vibration on most electric vehicle applications.
Offering robust backshell protection on high voltage connectors used in electric ancillaries, DC/DC converters, onboard chargers, high voltage battery packs, hybrid systems, hydrogen fuel cell vehicles, static power systems and more.
For use with high voltage connectors:
- Power Distribution Units (PDU)
- Motor Control Units (MCU)
- Invertors
- DC Drive Motors
- In-wheel Motors
- E-Axles
- High Voltage Battery Packs
- Hybrid Systems
- Static Power Systems
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 51mm (H) x 68mm (W) x 38mm (D) |
| Width (mm) | 68 |
| Height (mm) | 51 |
| Length (mm) | 38 |
| Diameter (mm) | No |
| Weight (g) | 26 |
| Weight (Kg) | No |
| Brand Name | Harnessflex |
| Industry | Automotive, Buses & Coaches, Marine, Mass transit, Trucks & Trailers |
| GTIN/Barcode | 5020963818219 |
| Material | Nylon PA46 |
| Colour | Orange |
| Sold | Pack of 5 |
| Product Type | Straight |
| Series | No |
| Metric Thread | No |
| Features | Halogen-free, high UV resistance, self extinguishing, low smoke, UL94 V2 rating |
| Conduit Size (NW) | NW23 |
| Conduit Size (NC) | NC28 |
| IP Rating | IP40 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 28.4 |
| Max Operating Temperature (°c) | 160°C |
| Operating Temperature Range (C) | -40°C to 160°C |
