Details

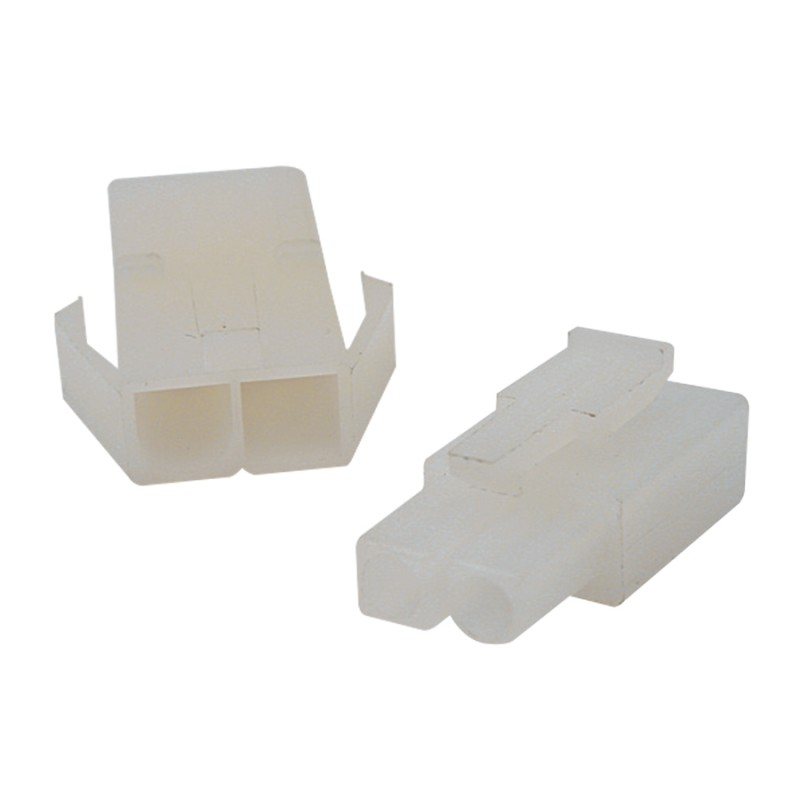

- Rated at up to 300V AC/DC, these compact connectors will withstand 1,500V AV/minute, and operate within a temperature range of -25°C to 105°C
- Polarised to ensure correct mating, a positive locking latch also automatically engages at mating, and the option exists for in line or hand fitted panel mounted installation
- Complete cell housing system fully covers and protects the contacts
- High reliability 2mm O.D. crimp contacts, are easily snapped into the housings by hand, with two sizes covering a wide wire range from 0.2-2.0mm²
- Maximum conact resistance is limited to 10 ohm.
Specifications +
Additional Information
| Unit of Measure | Each |
|---|---|
| Current Rating | 15 amps |
| Latch | Yes |
| Pins | 2 |
| Shape | Rectangle/Flat |
| Voltage | 300V |
