Description +
Details

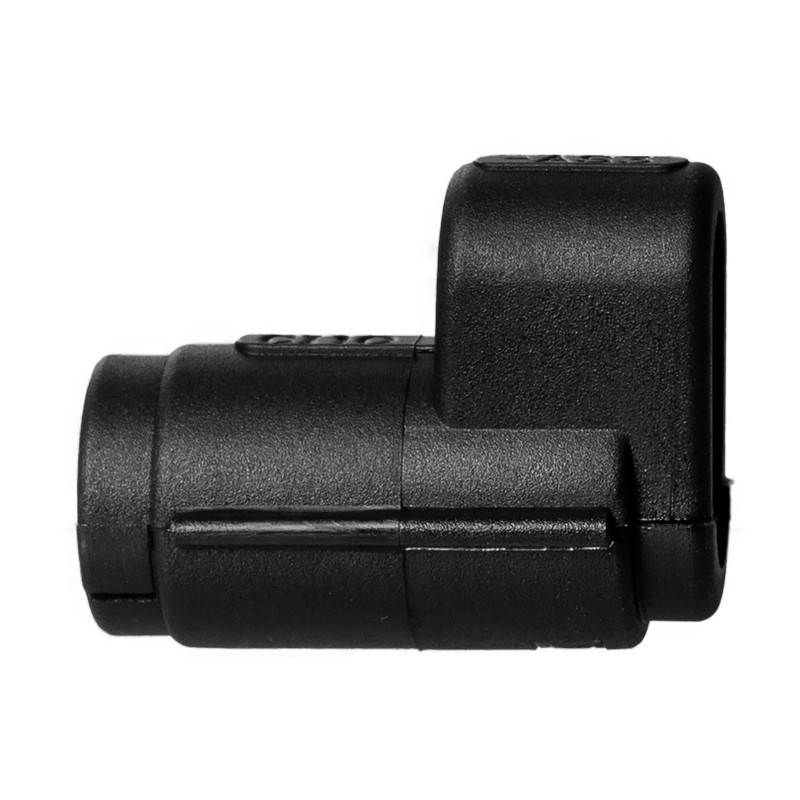

These fittings provide high-quality connections between AMP Superseal connectors and Harnessflex conduit systems. They are available in both single junction straight and 90° elbow interfaces, which can be snapped together over all types of slit and unslit conduit, maintaining maximum conduit bore. The 90° elbow versions also allow the conduit to swivel 360° around the connector housing
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 34mm (H) x 20mm (W) x 27mm (Dia) |
| Width (mm) | 20 |
| Height (mm) | 34 |
| Length (mm) | No |
| Diameter (mm) | 27 |
| Weight (g) | 3.8g |
| Brand Name | Harnessflex |
| Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
| GTIN/Barcode | 9351868011457 |
| Material | Nylon PA66 |
| Colour | Black |
| Sold | Pack of 10 |
| Product Type | Straight |
| Series | AMP Superseal |
| Metric Thread | No |
| Features | Halogen-free, high UV resistance, self extinguishing and low smoke toxicity. |
| Conduit Size (NW) | NW8.5 |
| Conduit Size (NC) | NC10 |
| IP Rating | IP40 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 11.6 |
| Max Operating Temperature (°c) | 120°C |
| Operating Temperature Range (C) | -40°C to 120°C |
