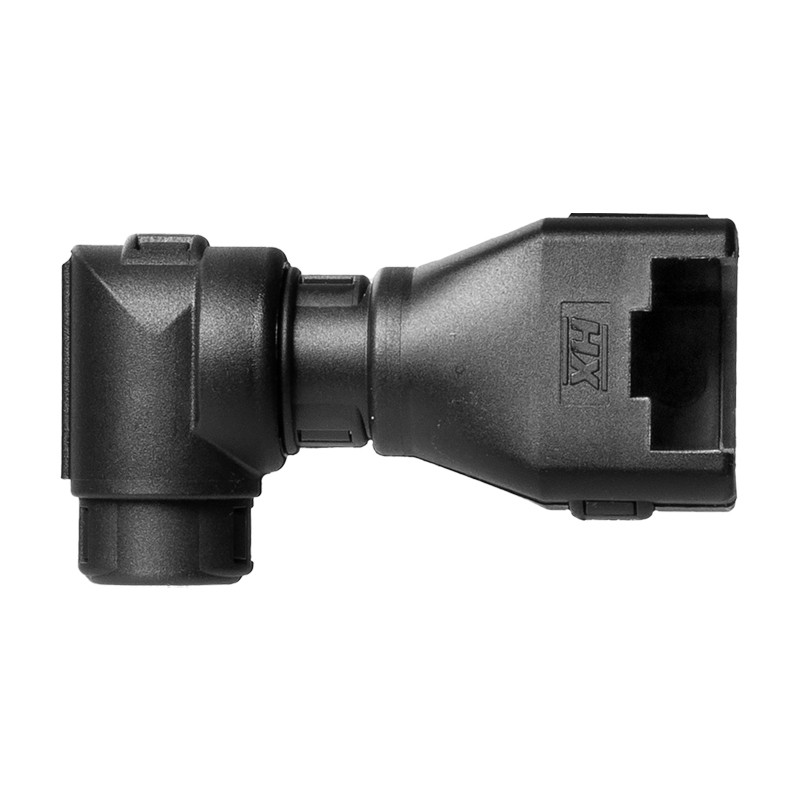

90° Elbow Interfaces for High-Integrity Connections: These specialized interfaces facilitate robust connections between Deutsch DT connectors and Harnessflex conduit systems. Designed to snap together seamlessly, they accommodate all types of Harnessflex slit and unslit conduits while maintaining the maximum conduit bore. Notably, the 90° elbow versions enable the conduit to rotate 360° around the connector housing. These interfaces are also compatible with Amphenol and Molex connector variants.
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 56mm (H) x 32mm (W) x 22mm (Dia) |
| Width (mm) | 32 |
| Height (mm) | 56 |
| Length (mm) | No |
| Diameter (mm) | 22 |
| Weight (g) | 6.9g |
| Brand Name | Harnessflex |
| Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
| GTIN/Barcode | 9351868011037 |
| Material | Nylon PA66 |
| Colour | Black |
| Sold | Pack of 10 |
| Product Type | 90° Elbow |
| Series | TE/Deutsch DT Series |
| Metric Thread | No |
| Features | Halogen-free, high UV resistance, self extinguishing and low smoke toxicity. |
| Conduit Size (NW) | NW10 |
| Conduit Size (NC) | NC12 |
| IP Rating | IP40 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 13.1 |
| Max Operating Temperature (°c) | 120°C |
| Operating Temperature Range (C) | -40°C to 120°C |
