Description +
Details

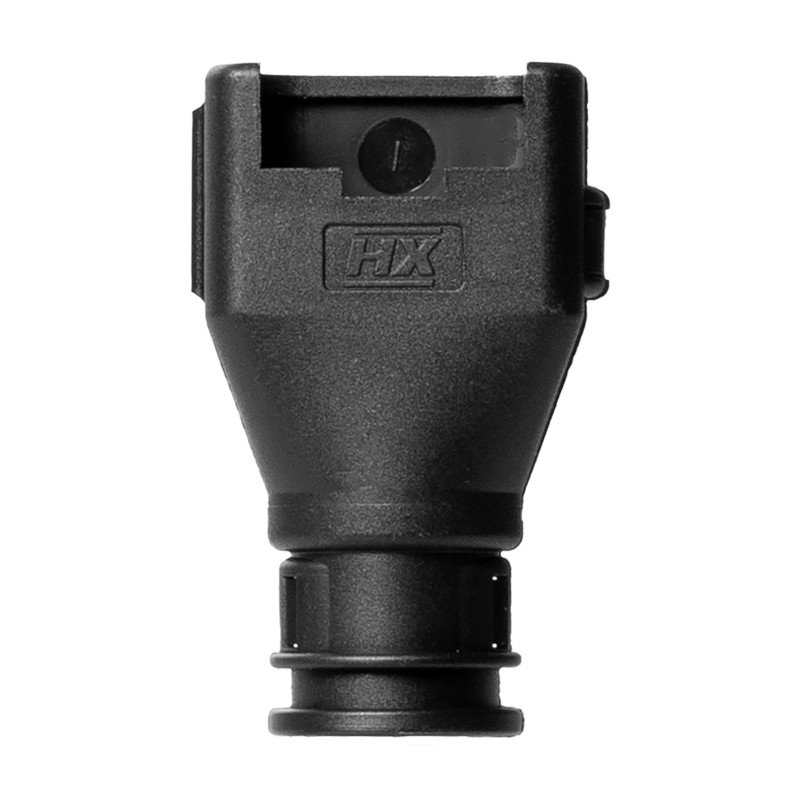

Deutsch DT connectors and Harnessflex conduit systems can be connected using straight interfaces that provide high-integrity connections. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. They are also compatible with Amphenol and Molex connector versions
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 42mm (H) x 27mm (W) x 24mm (Dia) |
| Width (mm) | 27 |
| Height (mm) | 42 |
| Length (mm) | No |
| Diameter (mm) | 24 |
| Weight (g) | 3.9g |
| Brand Name | Harnessflex |
| Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
| GTIN/Barcode | 9351868010887 |
| Material | Nylon PA66 |
| Colour | Black |
| Sold | Pack of 10 |
| Product Type | Straight |
| Series | TE/Deutsch DT Series |
| Metric Thread | No |
| Features | Halogen-free, high UV resistance, self extinguishing and low smoke toxicity. |
| Conduit Size (NW) | NW7.5 |
| Conduit Size (NC) | NC08 |
| IP Rating | IP40 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 10 |
| Max Operating Temperature (°c) | 120°C |
| Operating Temperature Range (C) | -40°C to 120°C |
