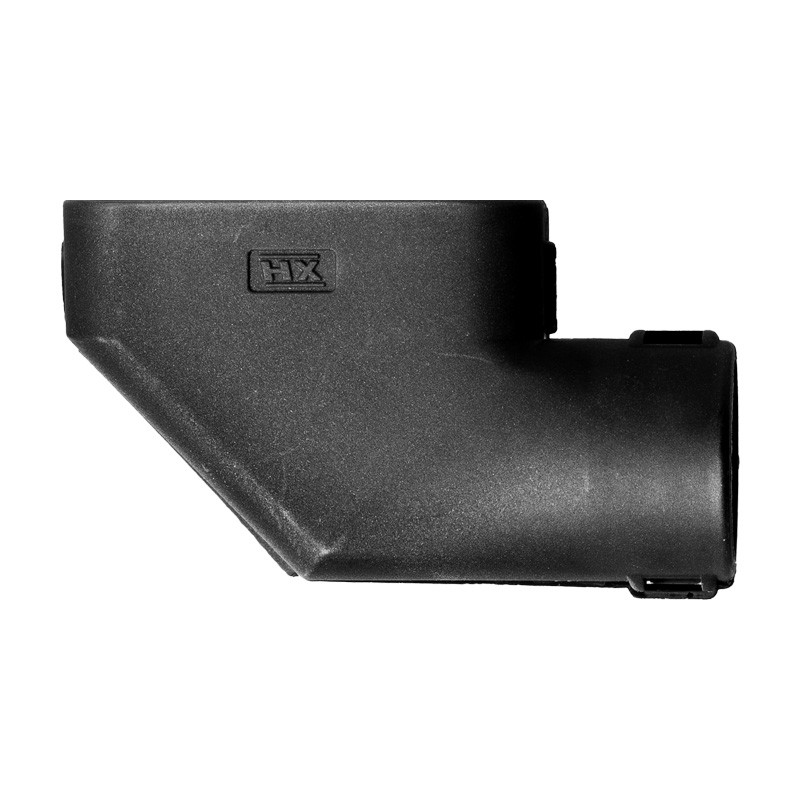

The Harnessflex Heavy Duty Series provides reliable cable protection for TE HDSCS and Aptiv CTCS XP Type B & E connectors, ensuring uninterrupted vehicle operation even in the harshest environments. The series features a heavy-duty plug and socket backshell interface that offers safe and secure cable protection.
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 68mm (H) x 49mm (W) x 40mm (Dia) |
| Width (mm) | 49 |
| Height (mm) | 68 |
| Length (mm) | No |
| Diameter (mm) | 40 |
| Weight (g) | 10g |
| Brand Name | Harnessflex |
| Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
| GTIN/Barcode | 9351868011648 |
| Material | Nylon PA66 |
| Colour | Black |
| Sold | Pack of 10 |
| Product Type | 90° Elbow |
| Series | TE HDSCS |
| Metric Thread | No |
| Features | Halogen-free, high UV resistance, self extinguishing and low smoke toxicity. |
| Conduit Size (NW) | NW17 |
| Conduit Size (NC) | NC20 |
| IP Rating | IP40 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 21.2 |
| Max Operating Temperature (°c) | 140°C |
| Operating Temperature Range (C) | -40°C to 140°C |
