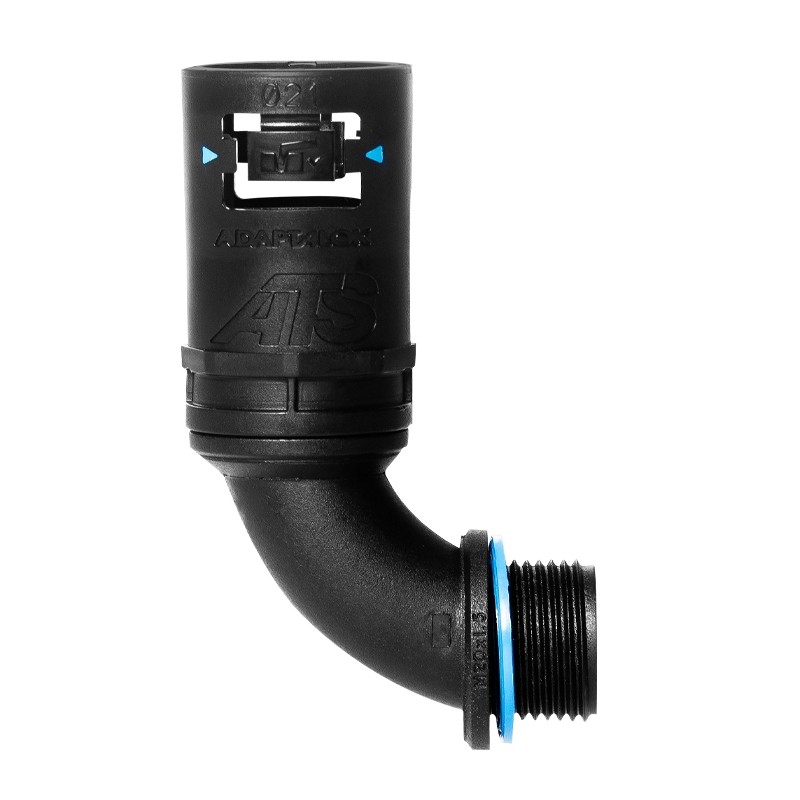

Harnessflex Fast-Fit 90 Degree Elbow NC20/M20 IP68/69 - Pack of 10

Harnessflex Fast-Fit 90 Degree Elbow NC20/M20 IP68/69 - Pack of 10

Product Code:
HTS20/M20/C90
  • Provides continuation of cable protection between conduit and cable entry points.
  • Fast installation with one piece design with integrated conduit and thread sealing.
  • IP66-68 rating for high mechanical and ingress protection against solids and liquids.
  • Secure conduit clip design ensures that the fittings remain in place.
  • Wide range of sizes to fit your Harnessflex conduits perfectly.
  • Blue elastomer colour.
$141.90 (Incl. GST) $129.00 (Excl. GST)
Currently Out of Stock.

Please try again later or Contact Us for alternatives.


Description +

Details

Discover the Harnessflex Fast-Fit Series Fittings: Reduce installation time and ensure maximum cable protection with our integrated one-piece design. When used with Harnessflex NC conduit, these fittings achieve the highest possible IP rating. Benefit from a failsafe design featuring integral seals and washers, minimizing installation errors and reducing future downtime costs.

Specifications +

Additional Information

Additional Description No
Overall Dimensions 72mm (H) x 49.1mm (W) x with 30.2mm (Dia) sealed fitting
Width (mm) 49
Height (mm) 72
Length (mm) No
Diameter (mm) 30
Weight (g) 23g
Brand Name Harnessflex
Industry Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers
GTIN/Barcode 5020963816857
Material Nylon PA66, TPE seal
Colour Black
Sold Pack of 10
Product Type 90° Elbow
Series Fast-Fit
Metric Thread M20 x 1.5
Features Halogen-free
Conduit Size (NW) NW17
Conduit Size (NC) NC20
IP Rating IP68
EU RoHS Compliant Yes
Conduit Size Outer Diameter (mm) 21.2
Max Operating Temperature (°c) No
Operating Temperature Range (C) No
