Discover the Harnessflex Fast-Fit Series Fittings: Reduce installation time and ensure maximum cable protection with our integrated one-piece design. When used with Harnessflex NC conduit, these fittings achieve the highest possible IP rating. Benefit from a failsafe design featuring integral seals and washers, minimizing installation errors and reducing future downtime costs.
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 76.4mm (H) x 60.1mm (W) x with 37.2mm (Dia) sealed fitting |
| Width (mm) | 60 |
| Height (mm) | 76 |
| Length (mm) | No |
| Diameter (mm) | 37 |
| Weight (g) | 36g |
| Brand Name | Harnessflex |
| Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
| GTIN/Barcode | 5020963817212 |
| Material | Nylon PA66, TPE seal |
| Colour | Black |
| Sold | Pack of 10 |

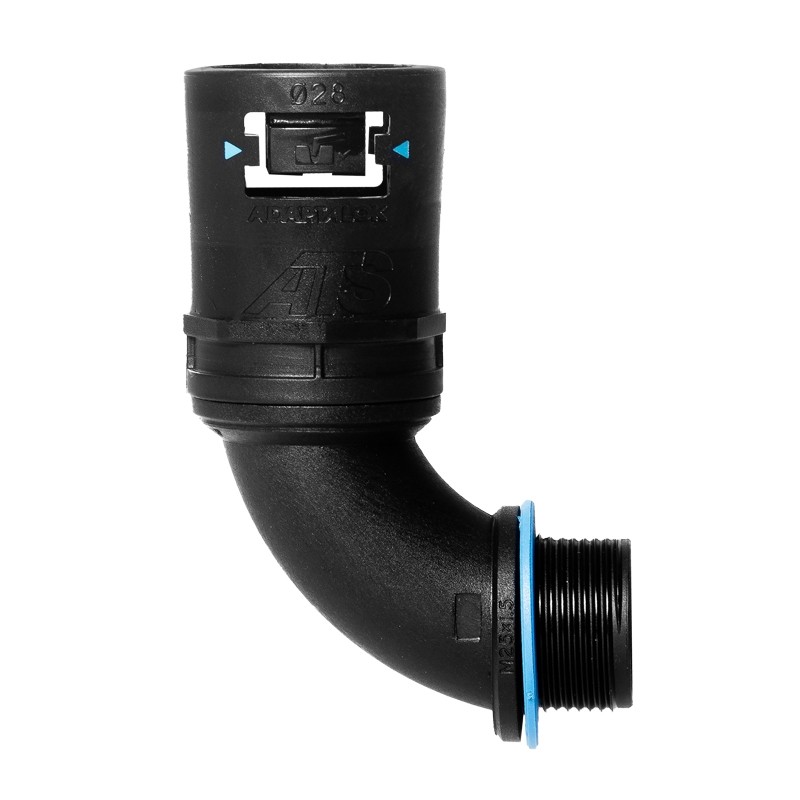

| Product Type | 90° Elbow |
| Series | Fast-Fit |
| Metric Thread | M25 x 1.5 |
| Features | Halogen-free |
| Conduit Size (NW) | NW23 |
| Conduit Size (NC) | NC28 |
| IP Rating | IP68 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 28.4 |
| Max Operating Temperature (°c) | No |
| Operating Temperature Range (C) | No |
