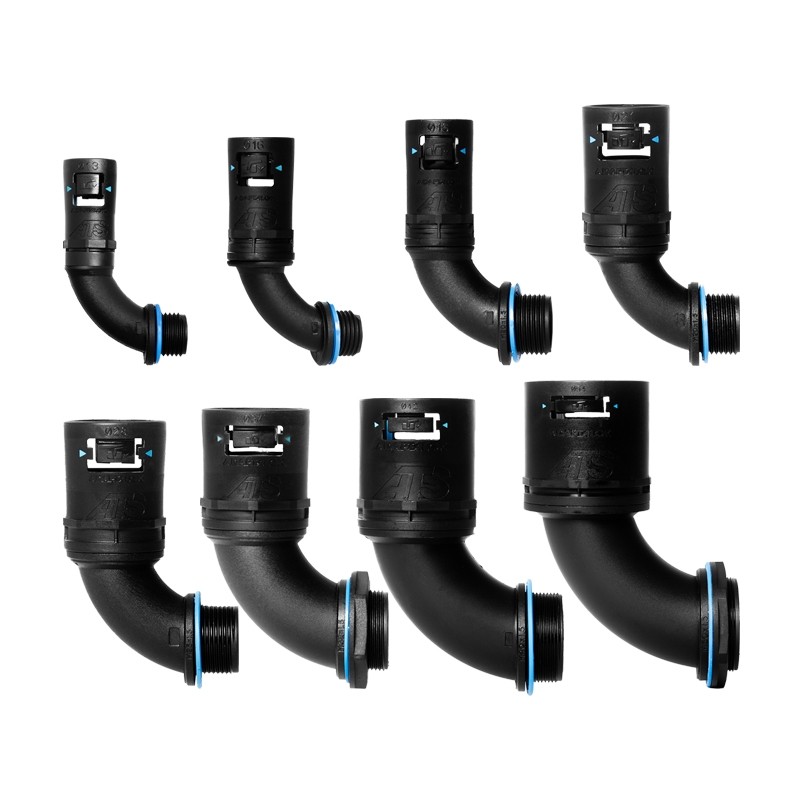

Harnessflex Fast-Fit 90 Degree Elbow

Harnessflex Fast-Fit 90° Elbow Sealed Fittings

Product Code:
HTS12/M16/C90W
  • Provides continuation of cable protection between conduit and cable entry points.
  • Fast installation with one piece design with integrated conduit and thread sealing.
  • IP66-68 rating for high mechanical and ingress protection against solids and liquids.
  • Secure conduit clip design ensures that the fittings remain in place.
  • Wide range of sizes to fit your Harnessflex conduits perfectly.
  • Blue elastomer colour.

Conformity

  • CE marked to Low Voltage Directive 2014/35/EU
  • BSI Kitemark KM35161 to BS EN 61386
  • CEI 11170 LR3 / LR4
  • UL1696 Approved
  • ADR Approved (with NC conduits only)


Harnessflex Fast-Fit 90° Elbow Sealed Fittings

Product Code Product Name More Information Price Qty
HTS16/M16/C90 Harnessflex Fast-Fit 90 Degree Elbow NC16/M16 IP68/69 - Pack of 10 Learn more
$137.50 (Incl. GST) $125.00 (Excl. GST)
HTS16/M20/C90 Harnessflex Fast-Fit 90 Degree Elbow NC16/M20 IP68/69 - Pack of 10 Learn more
$141.90 (Incl. GST) $129.00 (Excl. GST)
HTS20/M20/C90 Harnessflex Fast-Fit 90 Degree Elbow NC20/M20 IP68/69 - Pack of 10 Learn more
$141.90 (Incl. GST) $129.00 (Excl. GST)
HTS28/M25/C90 Harnessflex Fast-Fit 90 Degree Elbow NC28/M25 IP68/69 - Pack of 10 Learn more
$181.50 (Incl. GST) $165.00 (Excl. GST)
HTS32/M32/C90 Harnessflex Fast-Fit 90 Degree Elbow NC32/M32 IP68/69 - Pack of 10 Learn more
$228.80 (Incl. GST) $208.00 (Excl. GST)
HTS40/M40/C90 Harnessflex Fast-Fit 90 Degree Elbow NC40/M40 IP68/69 - Pack of 2 Learn more
$71.50 (Incl. GST) $65.00 (Excl. GST)
HTS50/M50/C90 Harnessflex Fast-Fit 90 Degree Elbow NC50/M50 IP68/69 - 1 Each Learn more
$49.50 (Incl. GST) $45.00 (Excl. GST)
Currently Out of Stock.

Please try again later or Contact Us for alternatives.


Description +

Details

Discover the Harnessflex Fast-Fit Series Fittings: Reduce installation time and ensure maximum cable protection with our integrated one-piece design. When used with Harnessflex NC conduit, these fittings achieve the highest possible IP rating. Benefit from a failsafe design featuring integral seals and washers, minimizing installation errors and reducing future downtime costs.

Specifications +

Additional Information

Additional Description

Conformity

  • CE marked to Low Voltage Directive 2014/35/EU
  • BSI Kitemark KM35161 to BS EN 61386
  • CEI 11170 LR3 / LR4
  • UL1696 Approved
  • ADR Approved (with NC conduits only)
Overall Dimensions No
Width (mm) No
Height (mm) No
Length (mm) N/A
Diameter (mm) No
Weight (g) No
Brand Name No
Industry Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers
GTIN/Barcode No
Material Nylon PA66, TPE seal
Colour Black
Sold No
Product Type 90° Elbow
Series Fast-Fit
Metric Thread No
Features Halogen-free
Conduit Size (NW) No
Conduit Size (NC) No
IP Rating IP68
EU RoHS Compliant Yes
Conduit Size Outer Diameter (mm) No
Max Operating Temperature (°c) 120°C
Operating Temperature Range (C) -45°C to 120°C
